23,000 micro air holes help maintain comfort without a strong direct draft.
← Pacific Air solutions
Samsung heat pumps
Year-round comfort, beautifully considered.
Efficient wall-mounted heating and cooling for homes, apartments, home offices and appropriate smaller spaces.
SAMSUNG
02
Wall-mounted
product families
Heat Pumps · Residential & light commercial
Year-round comfort for homes and smaller spaces.
Samsung wall-mounted systems for efficient heating and cooling across bedrooms, living spaces, apartments, home offices and appropriate smaller workplaces.
01Samsung

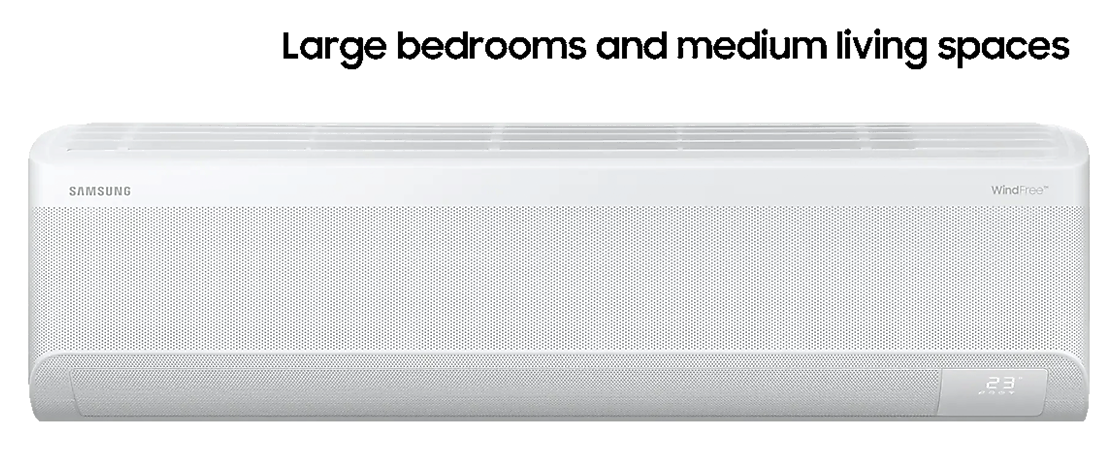

Geo+ WindFree™
Premium wall-mounted comfort that gently disperses conditioned air through approximately 23,000 micro air holes once the desired temperature is reached.
Selects appropriate operating modes for the conditions.
Fast heating and cooling distribute air throughout the room.
Built-in Wi-Fi control, routines and remote temperature management.
Well suited to Bedrooms · living spaces · home offices · consulting rooms
How WindFree™ works
Fast when you need it. Gentle when you don’t.
Fast Cooling first sends stronger, directional airflow from the main outlet. Once the desired temperature is reached, the outlet closes and WindFree™ Cooling gently disperses conditioned air across the perforated front surface—helping maintain comfort without the unpleasant feeling of a direct cold draft.
23,000micro air holesFine, widely dispersed airflow
01
Conventional / Fast CoolingOutlet open · directional airflow
02
WindFree™ CoolingOutlet closed · gentle dispersion
Technical detailCompare Geo+ WindFree models
| Specification | AR09DXEANWKNSA | AR12DXEANWKNSA | AR18DXEANWKNSA | AR24DXEANWKNSA | AR30DXEANWKNSA |
|---|---|---|---|---|---|
| Room size guide | Up to 21m² | 21–36m² | 36–51m² | 51–60m² | >72m² open living |
| Cooling capacity | 2.50kW | 3.50kW | 5.00kW | 6.80kW | 8.00kW |
| Heating capacity | 3.20kW | 4.00kW | 6.00kW | 7.20kW | 9.00kW |
| Cooling range (min–max) | 0.96–3.35kW | 0.99–4.0kW | 1.6–6.7kW | 1.4–7.6kW | 2.5–9.3kW |
| Heating range (min–max) | 0.72–5.0kW | 0.74–5.5kW | 1.3–8.0kW | 1.2–9.4kW | 2.4–13kW |
| EER / COP | 4.39 / 4.32 | 3.80 / 3.81 | 3.60 / 3.53 | 3.30 / 3.27 | 3.27 / 3.27 |
| Indoor noise (high / low) | 38 / 17dBA | 40 / 17dBA | 41 / 25dBA | 45 / 26dBA | 47 / 30dBA |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
All five models include Tri-Care Filter, Easy Filter Plus, Freeze Wash, Auto Clean, built-in Wi-Fi, AI Auto Cooling, Fast Cool, Good Sleep and dehumidification.
02Coming October 2026Samsung

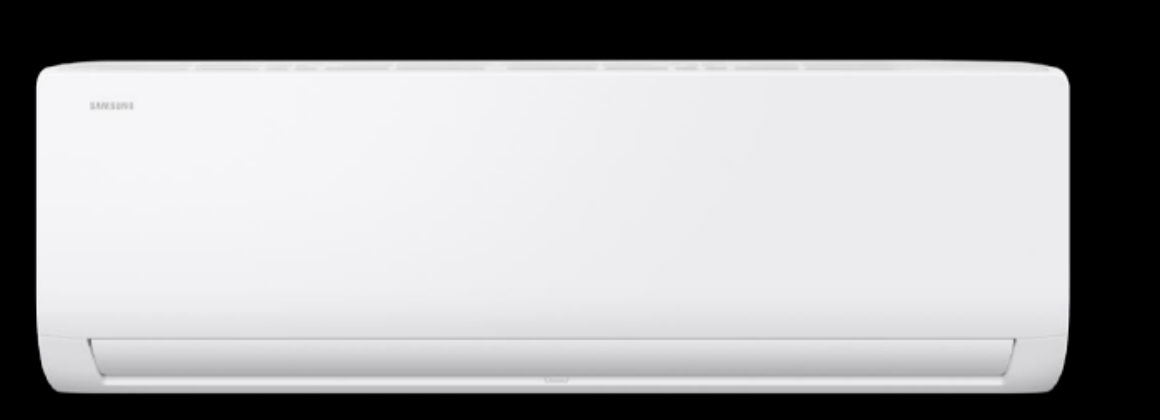

Smart Series
Straightforward home comfort that combines the core essentials with efficient operation and connected control.
Manage the system from a smartphone with Samsung SmartThings.
Fast mode helps reach the desired temperature sooner.
Runs a cycle after use to help remove condensation from the coils.
Four capacities for small through very large rooms.
Well suited to Bedrooms · lounges · apartments · smaller offices
Technical detailPreview Smart Series models
| Specification | AR40H09C1AMNSA | AR40H12C1AMNSA | AR40H18C1AMNSA | AR40H24C1AMNSA |
|---|---|---|---|---|
| Room size guide | Up to 21m² | 21–36m² | 36–51m² | 51–60m² |
| Cooling capacity | 2.42kW | 3.46kW | 5.30kW | 7.00kW |
| Heating capacity | 2.80kW | 3.95kW | 5.55kW | 7.40kW |
| Cooling range (min–max) | 0.90–3.45kW | 1.05–3.89kW | 2.30–6.20kW | 2.91–8.23kW |
| Heating range (min–max) | 0.70–7.00kW | 1.20–4.09kW | 2.40–6.40kW | 2.38–8.86kW |
| AEER / ACOP | 4.46 / 4.88 | 4.06 / 4.06 | 3.75 / 4.15 | 3.41 / 3.76 |
| Indoor noise (high / low) | 36 / 26dBA | 37 / 27dBA | 43 / 32dBA | 49 / 36dBA |
| Refrigerant | R32 | R32 | R32 | R32 |
The Smart Series is shown in the supplied Samsung range as Coming October 2026. Built-in Wi-Fi, Fast Cooling & Heating, AI Comfort, Good Sleep, dehumidification, 24 Hour Timer and Fan Mode are listed across all four models.
Pacific Air project support
Planning comfort for your home or smaller space?
Tell us about the rooms, how they are used and where you are. We’ll help you compare the Samsung wall-mounted heat pump options and identify the right next step.
Discuss your projectRoom-size guides and specifications are indicative. Orientation, usage, dimensions, construction materials, insulation, equipment and heat loads can all affect air-conditioning requirements.
